HANU™ 2X 5 Flow Reactor

The HANU™ Flow Reactors allow you to implement flow (photo)chemistry from the early discovery phase, seamlessly scale it throughout the process development stage and up to production.

HANU™ 2X 5 Flow Reactor

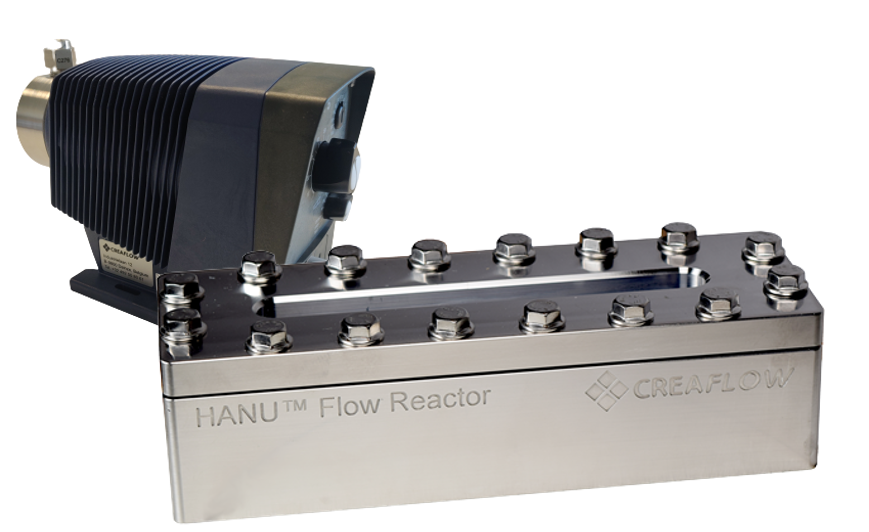

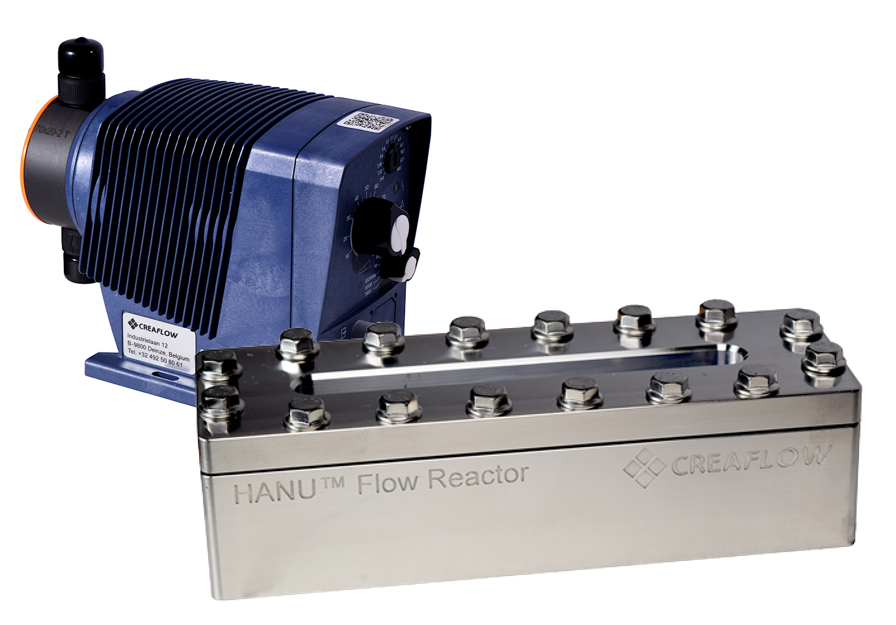

Our flagship product is the HANU™ 2X 5 Flow Reactor. The lab-scale system is equipped with a reactor base having an integrated heat exchanger that allows you to operate your (photo)chemical process at isothermal conditions. Fitted into the reactor base is the modular process inlay system that allows ultimate flexibility to adapt the reactor to your chemistry. Interchangeable ports and inlays are available in a variety of different materials and diverse static mixing element patterns. The process channel is covered by a large transparent window, allowing efficient irradiation or visual inspection and PAT methods. The assembly consists of a fully operational reactor unit, equiped with in-oulet ports and process inlay. Included is a pulsator unit, flight case and user manual.

(Download Flyer below)

User Applications:

Laboratory R&D phase
UV & VIS photochemistry
Hard-to-flow multi-phase processes (e.g. slurry-based)
Continuous processes requiring longer residence times (type B & C reactions, up to hour range!)
Compatible with highly corrosive media
High-pressure application (up to 25 bar)

Available Reactor Assemblies:

Assembly HANU™ 2X 5 HANU 2X 5 PRO
Art. No. S10094 S10099
Version v3.0 v3.0
Internal Volume 5 mL 5 mL
Temp. Range -20 to 100 °C -20 to 150 °C
Pressure Rating 10 barg (16 barg at RT) 25 barg
Heat Exchanger Heat transfer fluid system Heat transfer fluid system
Wetted Parts SS 316L (inlay), PEEK (ports), PTFE, FFKM, FEP Hastelloy C276 (inlay and ports), PTFE, FFKM, FEP
Transparent Window Borosilicate Borosilicate
Inlay Pattern Cubic 2x2 Cubic 2x2
Max. Particle Size 200 µm 200 µm
Inlay/Ports Exchangeable Exchangeable
Process Connections UNF ¼-28 Female 1/8” NPT Female (adaptors available)
Large Bore Tubing - Compatible
Temp. Probe Sockets - In- & Outlet
Throughput 0.1 - 35 mL/min (mg/h to g/d) 0.1 - 35 mL/min (mg/h to g/d)
Outer Dimensions 25 x 9 x 7 cm (L x W x H) 25 x 9 x 7 cm (L x W x H)
Pulsator Specifications:
Freq. Range 0 - 3 Hz 0 - 3 Hz
Volume Displacement 0.44mL @ 100% ampl. stroke 0.44mL @ 100% ampl. stroke
Wetted Parts PTFE, carbon filled PTFE Hastelloy C276, PTFE
Connection Ports UNF ¼-28 Female 1/8" NPT Female (adaptors available)

Click here for accessories

Flyer Download:

AttachmentSize
PDF icon HANU™ 2X 5 Flow Reactor1.35 MB
